PK 76002 EH High Performance
PK 76002 EH High Performance
PK 76002 EH High Performance
PK 76002 EH High Performance

Functional Design. For service friendliness, best appearance and high value retention.

  • Additional applications due to Power Link Plus
  • Maximum utilisation of the working range due to HPSC
  • Practical and attractive due to Functional Design
  • More lifting power due to E-HPLS

Technical data
Max. lifting moment 71,6 mt
Max. lifting capacity 23000 kg
Max. hydraulic outreach 20,4 m
Max. manual outreach 25,1 m
Slewing angle ∞
Slewing torque with 1 gear 4,5 mt
Stabiliser spread (std) 8.6 m
Fitting space required (std) 1,71 m
Width folded 2,55 m
Max. operating pressure 350 bar
Pump capacity 80 - 100 l/m
Weight 5910 t
Slewing torque with 2 gears 7,0 mt
Max. outreach (with fly jip) 30,5 m

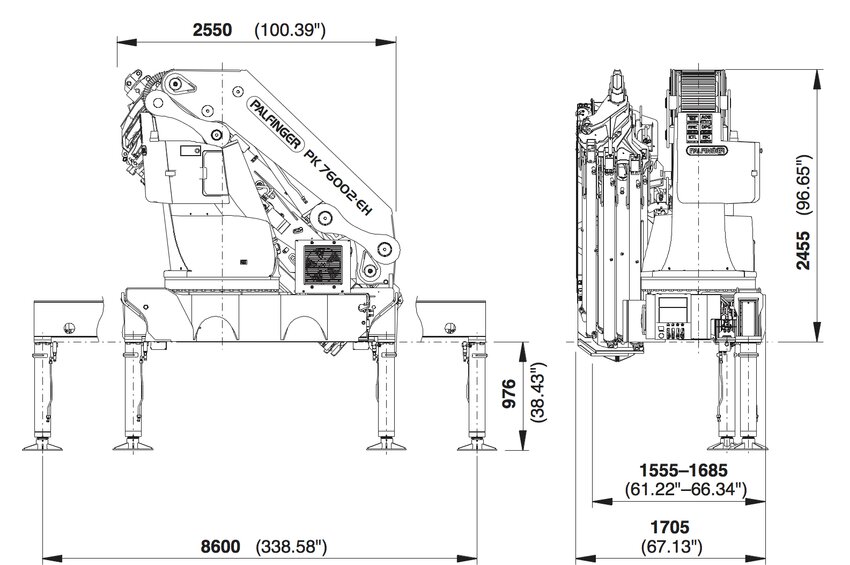

Technical data

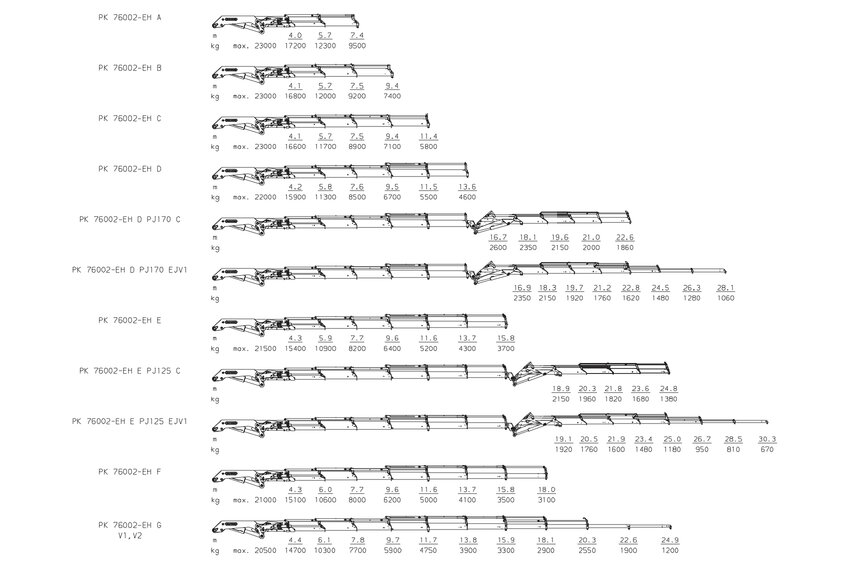

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 69.1 mt 7.6 m ∞ ° 4.5 / 7.0 mt 35.0 Mpa 80-100 l/min 5908 kg 2455 mm 2550 mm 1555 mm 7434.45 mm 23000 kg 9500 kg
B 68.2 mt 9.5 m ∞ ° 4.5 / 7.0 mt 35.0 Mpa 80-100 l/min 6246 kg 2455 mm 2550 mm 1555 mm 9366.45 mm 23000 kg 7400 kg
C 67.2 mt 11.5 m ∞ ° 4.5 / 7.0 mt 35.0 Mpa 80-100 l/min 6580 kg 2455 mm 2550 mm 1555 mm 11368.45 mm 23000 kg 5800 kg
D 66.3 mt 13.7 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 7040 kg 2455 mm 2550 mm 1555 mm 13578.45 mm 22000 kg 4600 kg
E 65.6 mt 15.9 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 7310 kg 2455 mm 2550 mm 1555 mm 15774.45 mm 21500 kg 3700 kg
F 65.0 mt 18.1 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 7730 kg 2455 mm 2550 mm 1685 mm 17963.45 mm 21000 kg 3100 kg
G 64.5 mt 20.4 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 7730 kg 2455 mm 2550 mm 1685 mm 20266.45 mm 20500 kg 2550 kg
