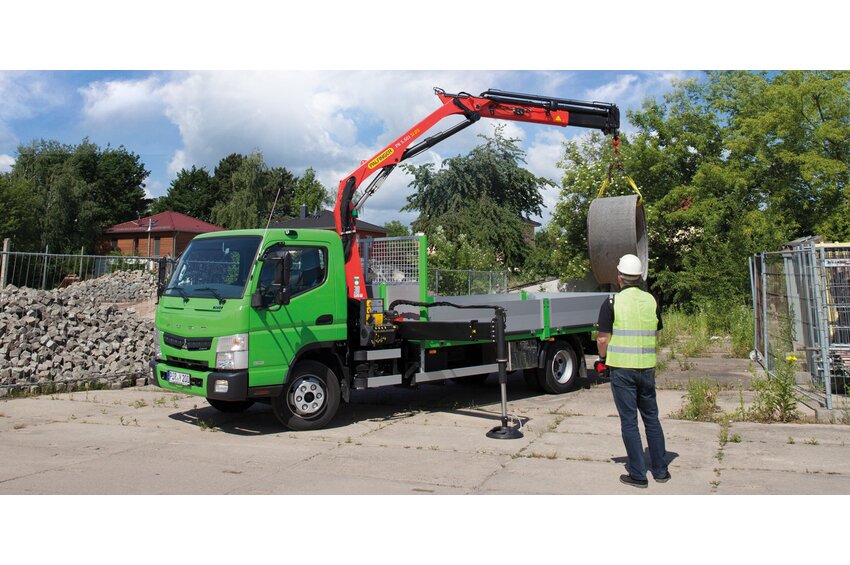

PK 5.501 SLD 5

THE CRANE GEOMETRY IS SIGNIFICANTLY IMPROVED DUE TO THE LINKAGE SYSTEM

• More power in the hook due to Single Link
• High operator friendliness thanks to radio remote control
• Maximum utilisation of the working range due to HPSC
• More lifting power due to A-HPLS
• Higher payloads due to intelligent lightweight design

Technical data

Max. lifting moment	5,1 mt
Max. lifting capacity	3300 kg
Max. hydraulic outreach	11,1 m
Max. manual outreach	12,7 m
Slewing angle	400°
Stabiliser spread (std)	2.9 m
Width folded	2,10 m
Max. operating pressure	360 bar
Pump capacity	20 - 30 l/m
Weight	750 t

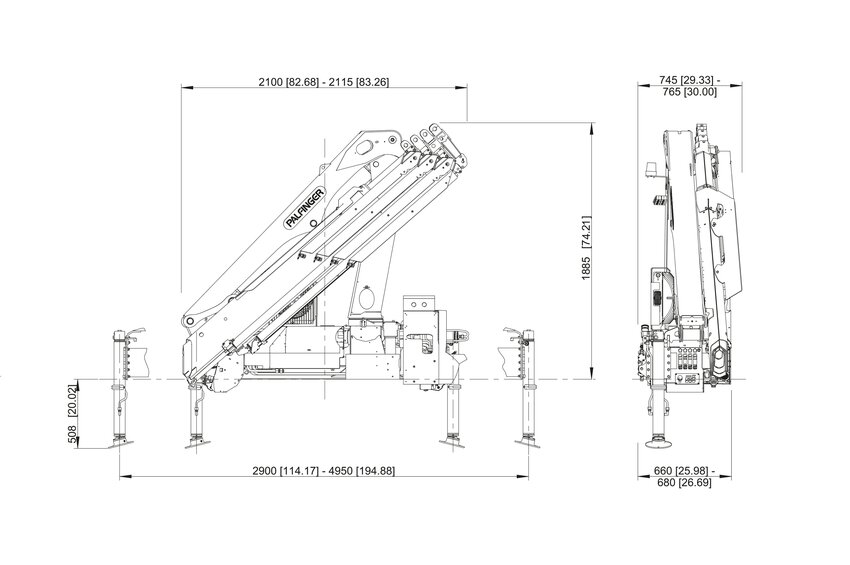

Technical data

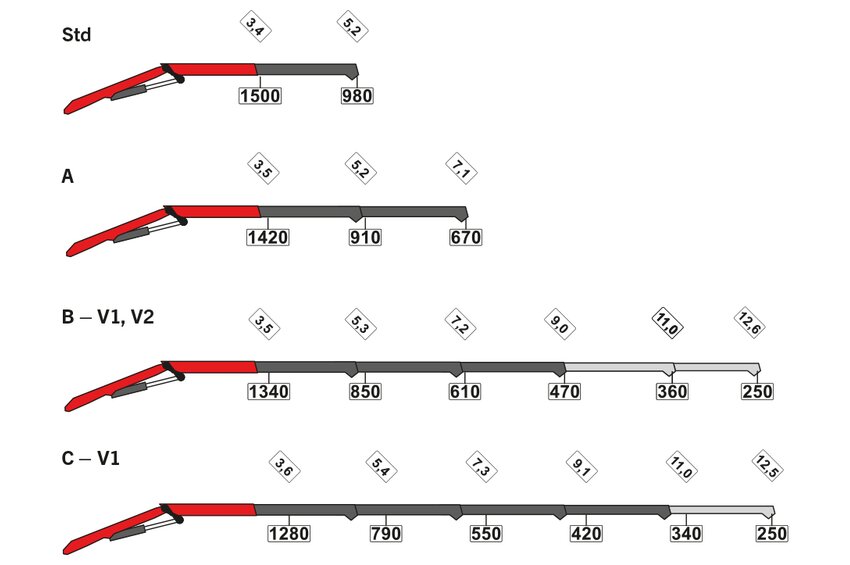

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	5.1 mt	5.3 m	400 °	0.6 mt	36.0 Mpa	20-30 l/min	725 kg	1830 mm	2100 mm	660 mm	5200 mm	-	980 kg
A	4.9 mt	7.2 m	400 °	0.6 mt	36.0 Mpa	20-30 l/min	795 kg	1830 mm	2100 mm	660 mm	7100 mm	-	670 kg
B	4.8 mt	9.2 m	400 °	0.6 mt	36.0 Mpa	20-30 l/min	860 kg	1845 mm	2100 mm	660 mm	9000 mm	-	470 kg
C	4.6 mt	11.1 m	400 °	0.6 mt	36.0 Mpa	20-30 l/min	920 kg	1885 mm	2115 mm	660 mm	11000 mm	-	340 kg
