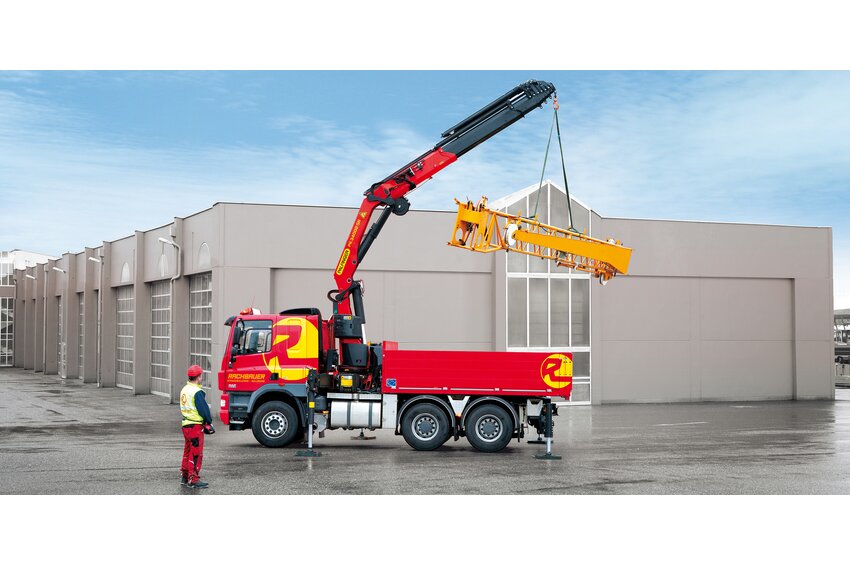

PK 34002 SH High Performance

Functional design and the latest control technology set standards in operator friendliness and comfort.

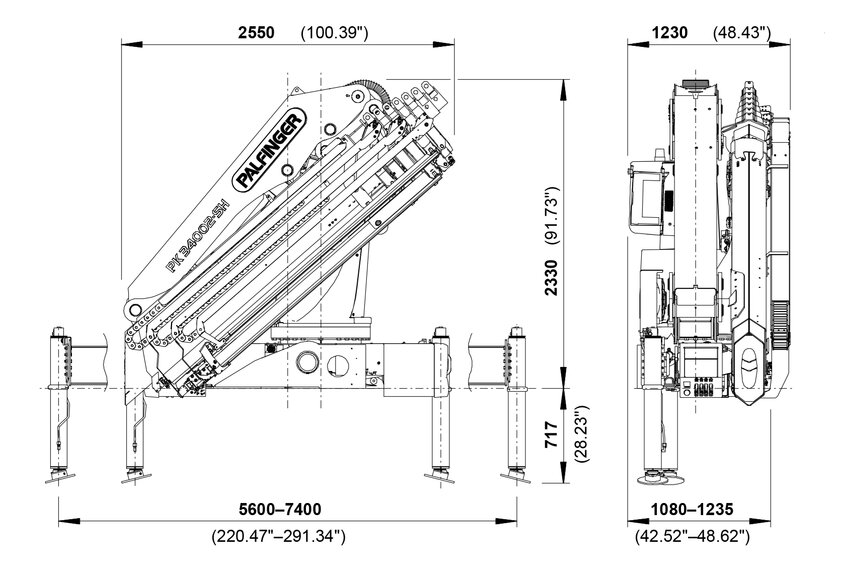

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	31.6 mt	8.1 m	∞ °	3.3 / 4.0 mt	36.5 Mpa	90-120 l/min	2931 kg	2330 mm	2550 mm	1010 mm	7880.01 mm	10000 kg	4000 kg
B	31.0 mt	10.2 m	∞ °	3.3 / 4.0 mt	36.5 Mpa	90-120 l/min	3132 kg	2330 mm	2550 mm	1010 mm	10060.01 mm	10000 kg	3000 kg
C	30.4 mt	12.4 m	∞ °	3.3 / 4.0 mt	36.5 Mpa	90-120 l/min	3346 kg	2330 mm	2550 mm	1090 mm	12240.01 mm	10000 kg	2300 kg
D	29.9 mt	14.6 m	∞ °	4.0 mt	36.5 Mpa	90-120 l/min	3584 kg	2330 mm	2550 mm	1130 mm	14420.01 mm	10000 kg	1800 kg
E	29.4 mt	16.8 m	∞ °	4.0 mt	36.5 Mpa	90-120 l/min	3730 kg	2330 mm	2550 mm	1130 mm	16650.01 mm	10000 kg	1420 kg
F	29.1 mt	19.1 m	∞ °	4.0 mt	36.5 Mpa	90-120 l/min	3843 kg	2330 mm	2550 mm	1140 mm	18880.01 mm	9600 kg	1160 kg
G	28.7 mt	21.3 m	∞ °	4.0 mt	36.5 Mpa	90-120 l/min	3952 kg	2330 mm	2550 mm	1160 mm	21110.01 mm	9300 kg	930 kg
