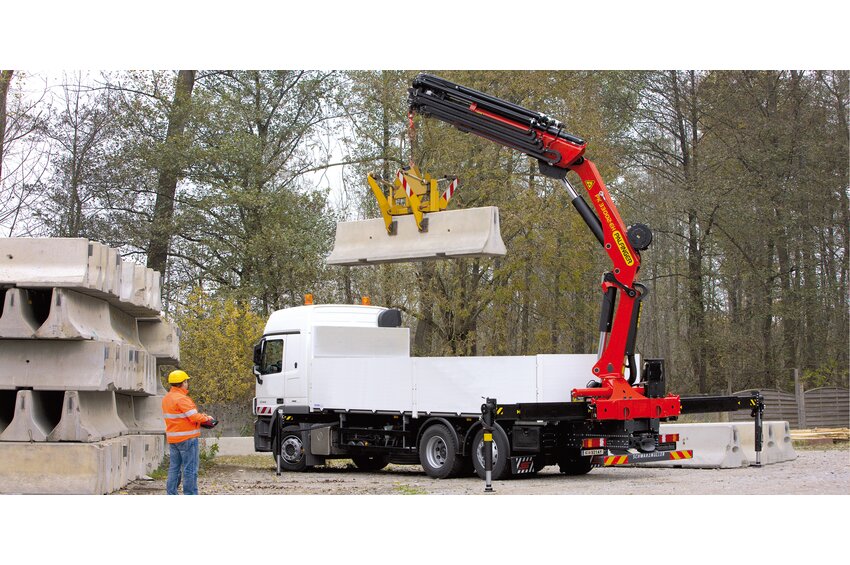

PK 33002 EH High Performance

More efficiency with fly-jib due to DPS Plus
Perfect appearance and extremely high value retention thanks to coating technology
Additional applications with Power Link Plus
More lifting power due to E-HPLS
Increased operating times due to low-maintenance extension system

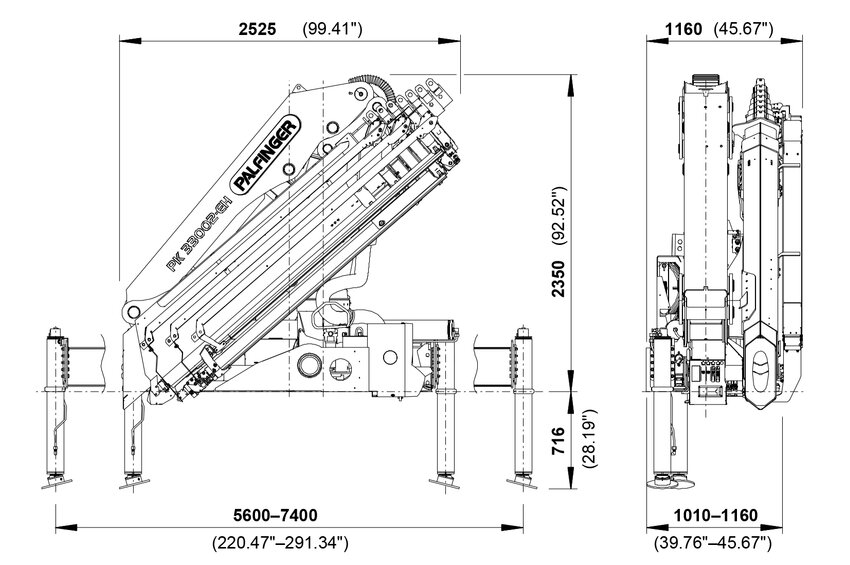

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	30.1 mt	8.1 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	2876 kg	2350 mm	2525 mm	1010 mm	7880.01 mm	10000 kg	3800 kg
B	29.6 mt	10.2 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	3077 kg	2350 mm	2525 mm	1010 mm	10060.01 mm	10000 kg	2850 kg
C	28.9 mt	12.4 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	3291 kg	2350 mm	2525 mm	1085 mm	12240.01 mm	10000 kg	2150 kg
D	28.4 mt	14.6 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	3469 kg	2350 mm	2525 mm	1125 mm	14420.01 mm	9800 kg	1680 kg
E	27.9 mt	16.8 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	3615 kg	2350 mm	2525 mm	1160 mm	16650.01 mm	9400 kg	1340 kg
F	27.6 mt	19.1 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	3728 kg	2350 mm	2525 mm	1160 mm	18880.01 mm	9100 kg	1080 kg
G	27.2 mt	21.3 m	400 °	3.2 mt	35.0 Mpa	80-100 l/min	3837 kg	2350 mm	2525 mm	1160 mm	21110.01 mm	8800 kg	860 kg
