PK 26.001L TEC 7

High outreach and high operating speed ensure efficient handling of construction material

Maximum radius of action thanks to slewing angle of 440 degrees
Optimized lubrication of the slewing mechanism thanks to an oil bath right up to the head bearing
Avoiding damage of the hydraulic hoses and compact set-up dimensions thanks to the new internal hose guiding system
Excellent visibility and high operator comfort thanks to new top seat with new joystick control
More lifting capacity thanks to S-HPLS and high operator friendliness thanks to PALcom P7 (PK 22.001L TEC 7 and PK 26.001L TEC 7)


Max. lifting moment	25,3 mt
Max. lifting capacity	5650 kg
Max. hydraulic outreach	16,3 m
Slewing angle	440°
Slewing torque with 1 gear	3,1 mt
Stabiliser spread (std)	6.6 m
Max. operating pressure	370 bar
Weight	2615 t
Recommended pump capacity Top seat PVG32 LS	85 - 110 l/min

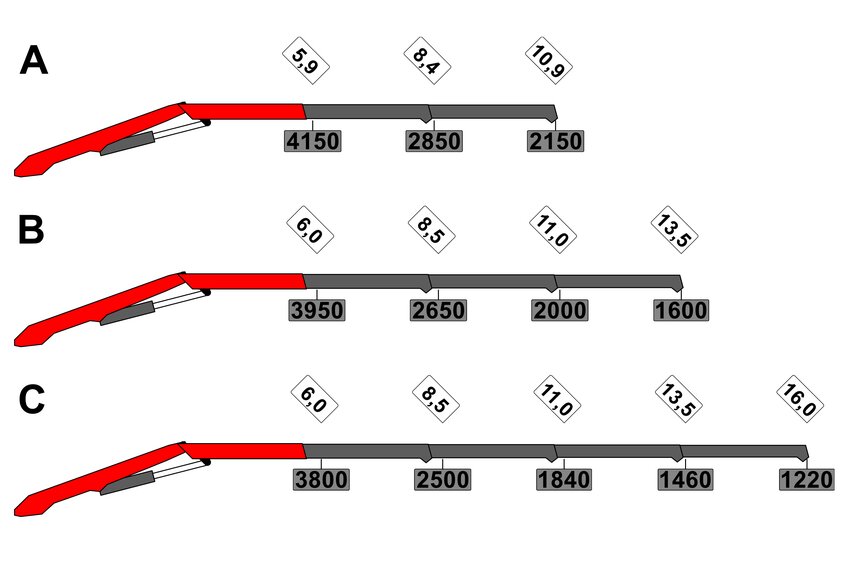

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	24.6 mt	11.1 m	440 °	3.1 mt	37.0 bar	65-110 l/min	2615 kg	2430 mm	2550 mm	-	10897 mm	-	2150 kg
B	24.0 mt	13.7 m	440 °	3.1 mt	37.0 bar	65-110 l/min	2730 kg	2430 mm	2550 mm	-	13500 mm	-	1600 kg
C	23.4 mt	16.3 m	440 °	3.1 mt	37.0 bar	65-110 l/min	2930 kg	2430 mm	2550 mm	-	16000 mm	-	1220 kg
