PK 23502 High Performance

The E-HPLS and the enormous reach opens up a wide range of applications

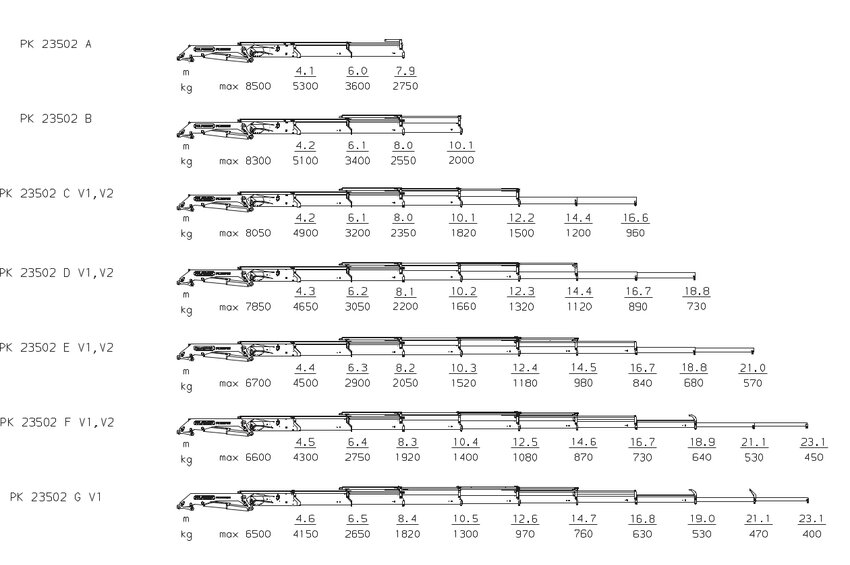

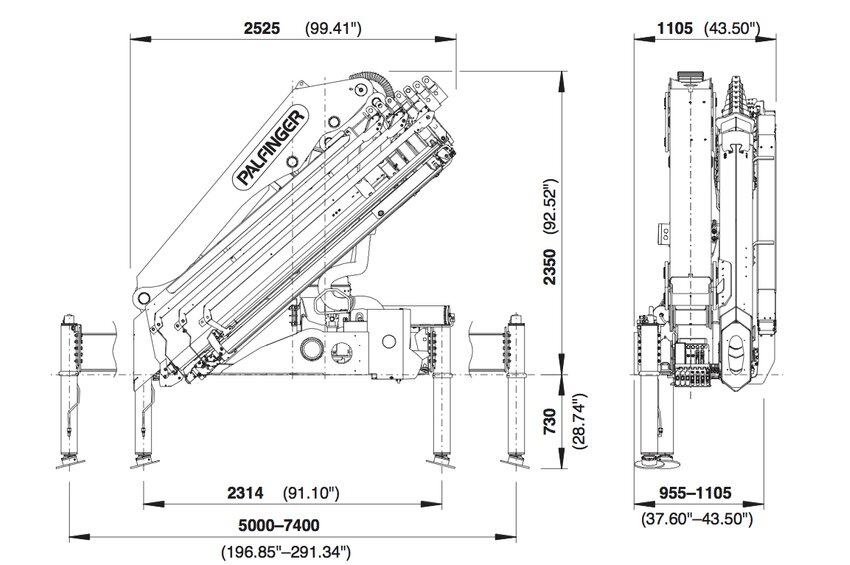

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	21.7 mt	8.1 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	2583 kg	2350 mm	2525 mm	955 mm	7880.01 mm	8500 kg	2700 kg
B	21.2 mt	10.2 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	2764 kg	2350 mm	2525 mm	955 mm	10060.01 mm	8300 kg	1960 kg
C	20.7 mt	12.4 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	2943 kg	2350 mm	2525 mm	1030 mm	12240.01 mm	8050 kg	1460 kg
D	20.1 mt	14.6 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	3120 kg	2350 mm	2525 mm	1070 mm	14420.01 mm	7850 kg	1100 kg
E	19.7 mt	16.8 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	3266 kg	2350 mm	2525 mm	1105 mm	16650.01 mm	6700 kg	820 kg
F	19.3 mt	19.1 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	3379 kg	2350 mm	2525 mm	1105 mm	18880.01 mm	6600 kg	620 kg
G	18.9 mt	21.3 m	400 °	2.8 mt	32.0 Mpa	50-75 l/min	3488 kg	2350 mm	2525 mm	1105 mm	21110.01 mm	6500 kg	450 kg
