PK 20.501L TEC 3

High outreach and high operating speed ensure efficient handling of construction material

• Maximum radius of action thanks to slewing angle of 440 degrees
• Optimized lubrication of the slewing mechanism thanks to an oil bath right up to the head bearing
• Avoiding damage of the hydraulic hoses and compact set-up dimensions thanks to the new internal hose guiding system
• Excellent visibility and high operator comfort thanks to new top seat with new joystick control

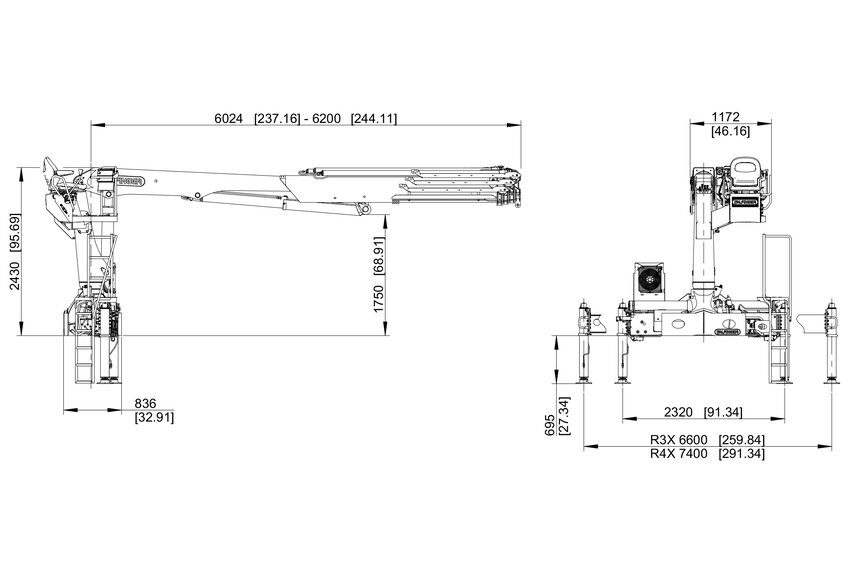

Technical data

Max. lifting moment	19,7 mt
Max. lifting capacity	5650 kg
Max. hydraulic outreach	13,7 m
Slewing angle	440°
Slewing torque with 1 gear	3,1 mt
Stabiliser spread (std)	6.6 m
Max. operating pressure	340 bar
Weight	2400 t
Recommended pump capacity Top seat RSQ240	50 - 70 l/min
Recommended pump capacity Top seat RSQ240 LS	65 - 90 l/min
Recommended pump capacity Top seat PVG32 Radio	85 - 110 l/min

Technical data

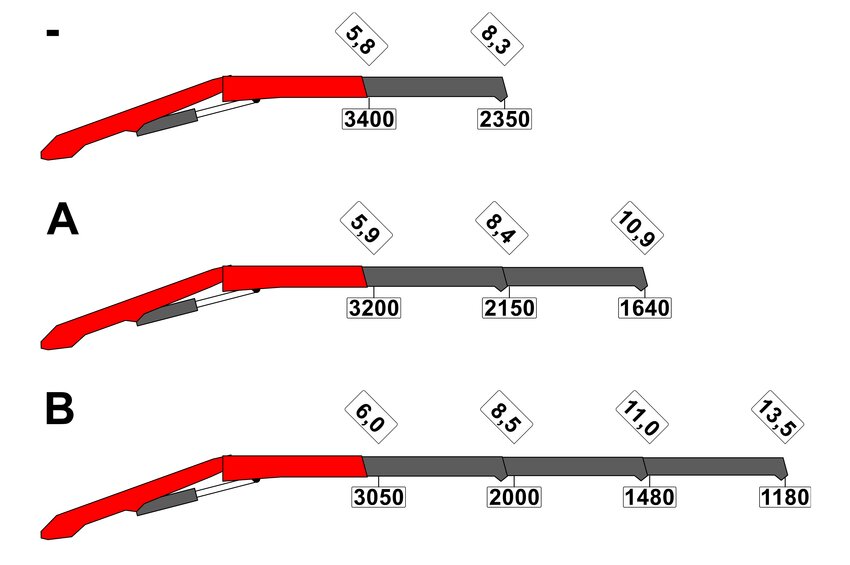

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	19.7 mt	8.5 m	440 °	2.3 mt	34.0 bar	50-110 l/min	2400 kg	2430 mm	2550 mm	-	8300 mm	-	2350 kg
A	19.1 mt	11.1 m	440 °	2.3 mt	34.0 bar	50-110 l/min	2570 kg	2430 mm	2550 mm	-	10900 mm	-	1640 kg
B	18.4 mt	13.7 m	440 °	2.3 mt	34.0 bar	50-110 l/min	2730 kg	2430 mm	2550 mm	-	13500 mm	-	1180 kg
