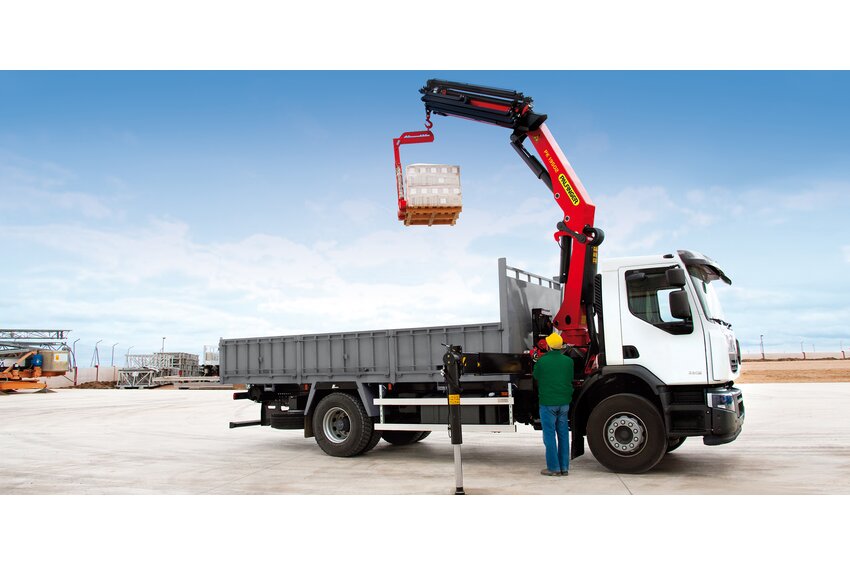

PK 19502 High Performance

Its compact dimensions and low dead weight allows an optimised mounting concept

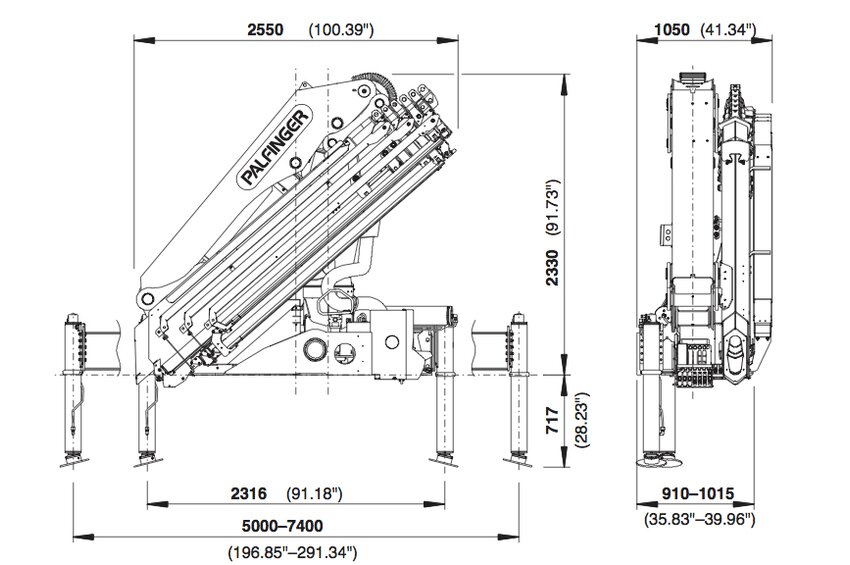

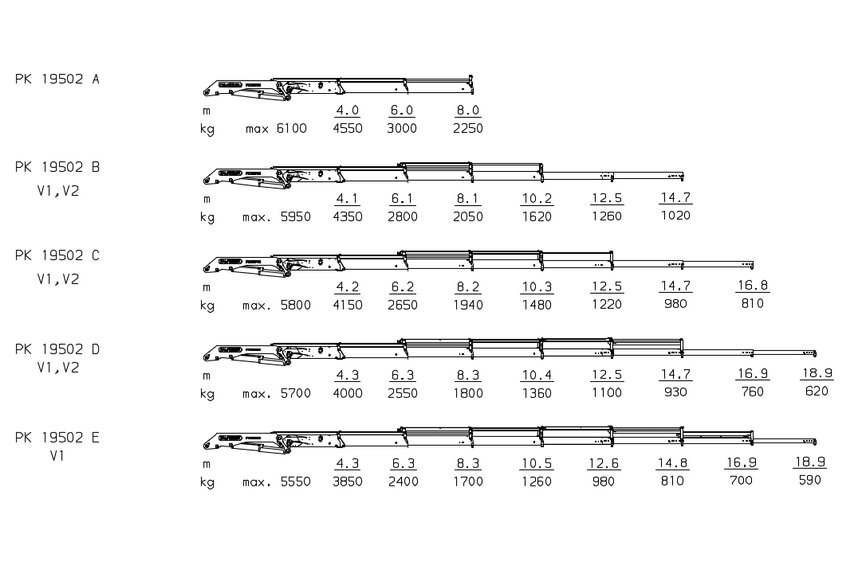

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	18.1 mt	8.2 m	400 °	2.3 mt	32.0 Mpa	45-65 l/min	2391 kg	2330 mm	2550 mm	910 mm	8010.01 mm	6100 kg	2250 kg
B	17.7 mt	10.4 m	400 °	2.3 mt	32.0 Mpa	45-65 l/min	2559 kg	2330 mm	2550 mm	910 mm	10230.01 mm	5950 kg	1620 kg
C	17.3 mt	12.6 m	400 °	2.3 mt	32.0 Mpa	45-65 l/min	2694 kg	2330 mm	2550 mm	975 mm	12460.01 mm	5800 kg	1220 kg
D	17.0 mt	14.9 m	400 °	2.3 mt	32.0 Mpa	45-65 l/min	2818 kg	2330 mm	2550 mm	1015 mm	14690.01 mm	5700 kg	930 kg
E	16.6 mt	17.1 m	400 °	2.3 mt	32.0 Mpa	45-65 l/min	2935 kg	2330 mm	2550 mm	1015 mm	16920.01 mm	5600 kg	702 kg
