Its Power Link Plus and perfect power to weight ratio offers an efficient load handling

  • Maximum utilisation of the working range due to HPSC
  • Increased operating times thanks to low-maintenance extension system
  • High operator friendliness due to radio remote control
  • Maximum precision and safety thanks to optional AOS
  • Additional applications with Power Link Plus

Technical data
Max. lifting moment 17,1 mt
Max. lifting capacity 6200 kg
Max. hydraulic outreach 17,0 m
Slewing angle 420°
Slewing torque with 1 gear 2,0 mt
Stabiliser spread (std) 5.0 m
Width folded 2,51 m
Max. operating pressure 350 bar
Pump capacity 60 - 80 l/m
Weight 1893 t
Max. outreach (with fly jip) 25,1 m

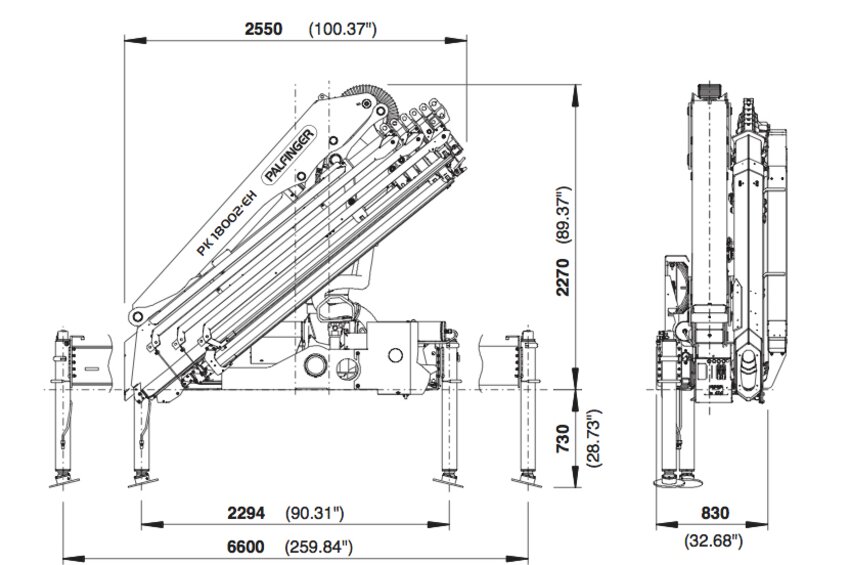

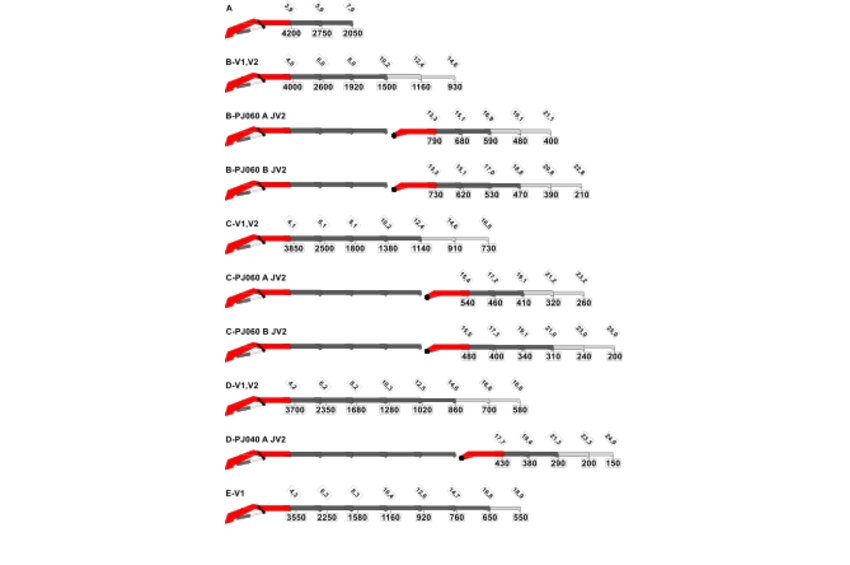

Technical data

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 16.5 mt 8.1 m 420 ° 2.0 mt 35.0 Mpa 60-80 l/min 1893 kg 2270 mm 2510 mm 830 mm 7947.72 mm 6100 kg 2050 kg
B 16.1 mt 10.3 m 420 ° 2.0 mt 35.0 Mpa 60-80 l/min 2026 kg 2270 mm 2510 mm 830 mm 10177.72 mm 6000 kg 1500 kg
C 15.8 mt 12.6 m 420 ° 2.0 mt 35.0 Mpa 60-80 l/min 2147 kg 2270 mm 2510 mm 900 mm 12407.72 mm 5850 kg 1140 kg
D 15.5 mt 14.8 m 420 ° 2.0 mt 35.0 Mpa 60-80 l/min 2260 kg 2270 mm 2510 mm 940 mm 14637.72 mm 5750 kg 860 kg
E 15.1 mt 17.0 m 420 ° 2.0 mt 35.0 Mpa 60-80 l/min 2371 kg 2270 mm 2550 mm 940 mm 16867.72 mm 5650 kg 650 kg
