PK 18.001L SLD 3

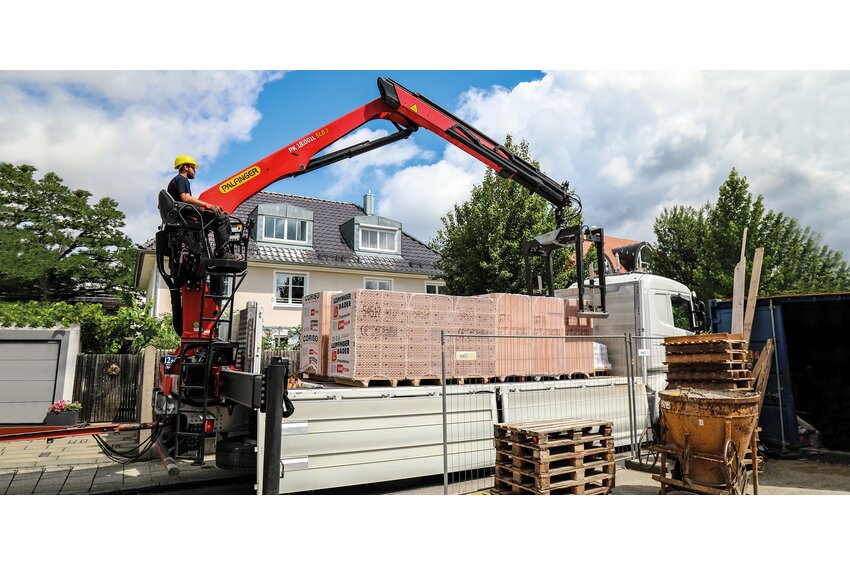

OPTIMIZED LOADING HEIGHT IN CLOSE RANGE ALLOWS EFFICIENT HANDLING OF CONSTRUCTION MATERIAL

• Single Link
• Paltronic overload protection
• Top seat
• Optional:
  • Stability monitoring system ISC-S (standard for CE), HPSC-L, HPSC-E
• NON-CE and CE model

Technical data

Max. lifting moment	17,7 mt
Max. lifting capacity	5000 kg
Max. hydraulic outreach	13,5 m
Slewing angle	440°
Slewing torque with 1 gear	2,3 mt
Stabiliser spread (std)	5.6 m
Width folded	2,55 m
Max. operating pressure	300 bar
Weight	2270 t
Recommended pump capacity Top seat RSQ240	50 - 70 l/min
Recommended pump capacity Top seat RSQ240 LS	65 - 90 l/min

Technical data

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
()	17.7 mt	8.4 m	440 °	2.3 mt	30.0 Mpa	50-90 l/min	2270 kg	2495 mm	2550 mm	-	8200 mm	-	2100 kg
A	16.9 mt	11.0 m	440 °	2.3 mt	30.0 Mpa	50-90 l/min	2470 kg	2495 mm	2550 mm	-	10700 mm	-	1440 kg
B	16.2 mt	13.5 m	440 °	2.3 mt	30.0 Mpa	50-90 l/min	2660 kg	2495 mm	2550 mm	-	13300 mm	-	1000 kg
