PK 15500T-EH High Performance

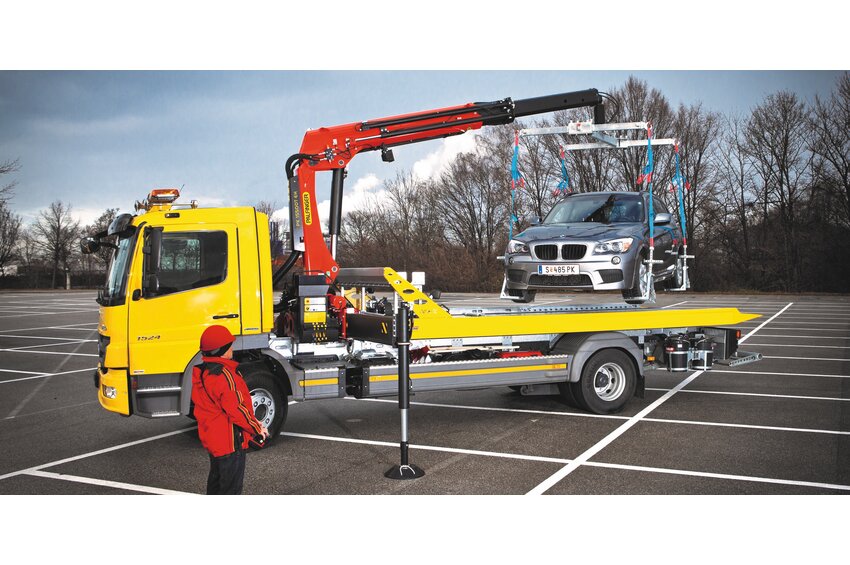

The T models have been developed specifically for the varied requirements of breakdown and recovery services. They are impressive by virtue of detailed solutions such as the laterally arranged extension cylinders which guarantee a low overall height of the vehicle when the main boom is extended. A second control panel enables a perfect view of the platform. The radio remote control and electronic HPLS fitted as standard on the PK 15500T EH/PK 19500T EH also make day-to-day assignments easier.
Technical data
| Max. lifting moment | 14,7 mt |
|---|---|
| Max. lifting capacity | 5800 kg |
| Max. hydraulic outreach | 10,0 m |
| Slewing angle | 420° |
| Slewing torque with 1 gear | 2,2 mt |
| Max. operating pressure | 350 bar |
| Pump capacity | 40 - 70 l/m |
| Weight | 1440 t |
Technical data

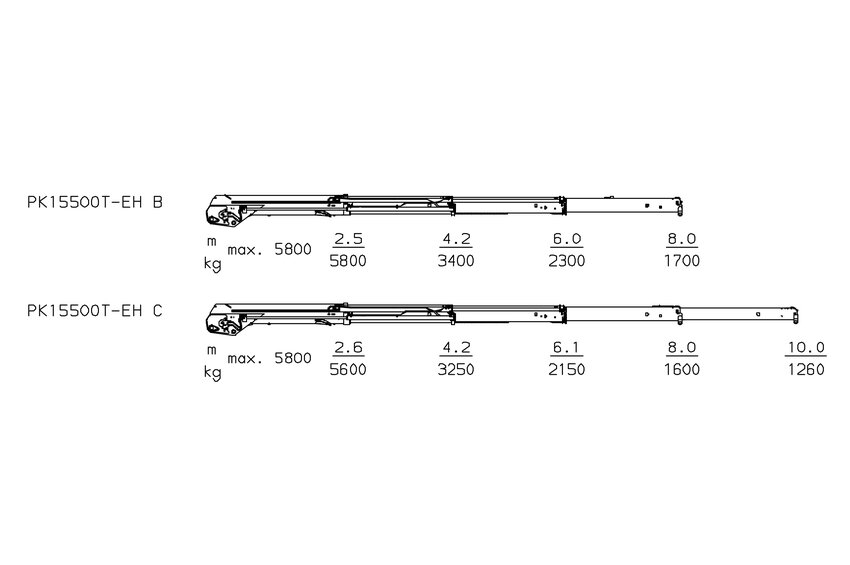

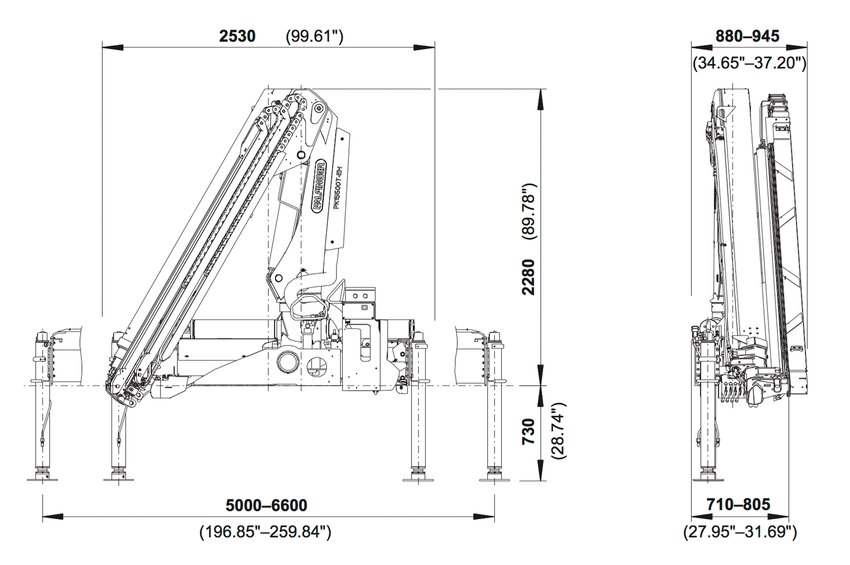

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 13.5 mt | 8.0 m | 420 ° | 2.2 mt | 35.0 Mpa | 40-70 l/min | 1440 kg | 2280 mm | 2530 mm | 710 mm | 7965 mm | 5800 kg | 1700 kg |
| C | 12.6 mt | 10.0 m | 420 ° | 2.2 mt | 35.0 Mpa | 40-70 l/min | 1540 kg | 2280 mm | 2530 mm | 750 mm | 10015 mm | 5800 kg | 1260 kg |
Back to overview
Special loader cranes
Model
PK 15500T-EH High Performance
Brand
Palfinger
