PK 15001 L Performance

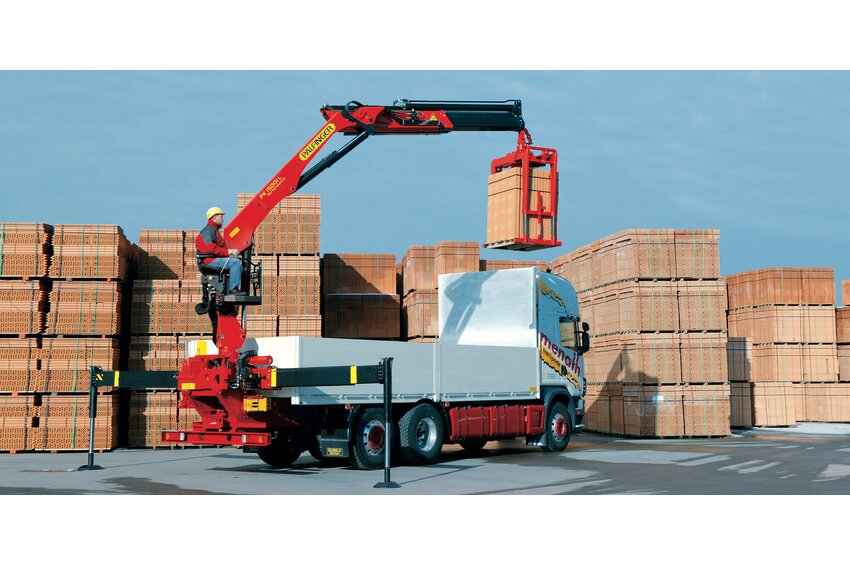

Nothing is left to be desired when the PK 15001 L Performance supremely tackles its work of transporting building materials. This crane's speed of movement makes it an efficient and reliable partner in the handling of heavy loads. Maximum stability of the carrier vehicle is ensured by a particularly wide hydraulic stabiliser.

Technical data

Max. lifting moment	14,0 mt
Max. lifting capacity	6200 kg
Max. hydraulic outreach	11,3 m
Slewing angle	420°
Slewing torque with 1 gear	1,9 mt
Stabiliser spread (std)	6.6 m
Width folded	2,50 m
Max. operating pressure	300 bar
Pump capacity	40 - 60 l/m
Weight	1803 t

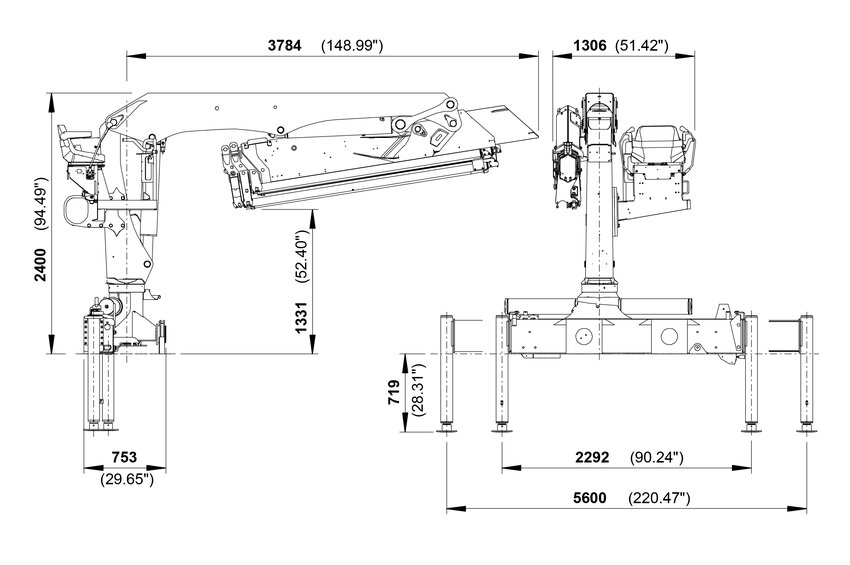

Technical data

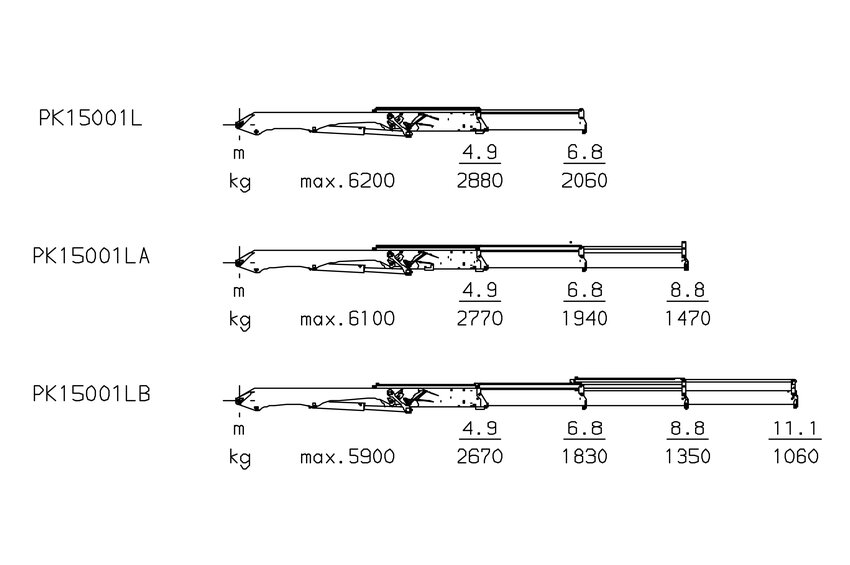

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
Std	14.1 mt	7.0 m	420 °	14.1 mt	30.0 Mpa	40 - 60 l/min	1803 kg	2400 mm	2480 mm	-	6800 mm	-	2060 kg
A	13.6 mt	9.0 m	420 °	1.9 mt	30.0 Mpa	40-60 l/min	1953 kg	2400 mm	2480 mm	-	8840.26 mm	6100 kg	1460 kg
B	13.1 mt	11.3 m	420 °	1.9 mt	30.0 Mpa	40-60 l/min	2088 kg	2400 mm	2480 mm	-	11070.26 mm	5900 kg	1060 kg
