PK 13500T High Performance

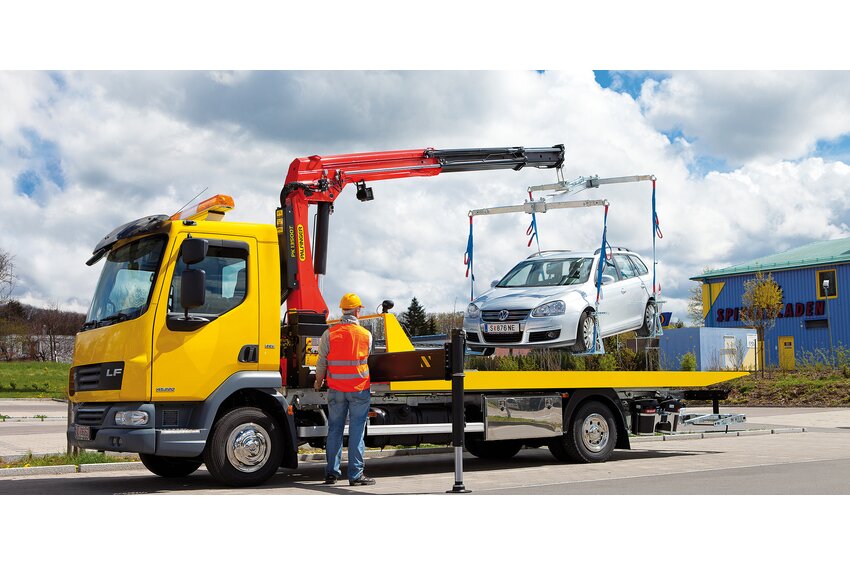

The T models have been developed specifically for the varied requirements of breakdown and recovery services. They are impressive by virtue of detailed solutions such as the laterally arranged extension cylinders which guarantee a low overall height of the vehicle when the main boom is extended. A second control panel enables a perfect view of the platform. The radio remote control and electronic HPLS fitted as standard on the PK 15500T EH/PK 19500T EH also make day-to-day assignments easier.
Technical data
| Max. lifting moment | 12,2 mt |
|---|---|
| Max. lifting capacity | 5800 kg |
| Max. hydraulic outreach | 10,0 m |
| Slewing angle | 420° |
| Slewing torque with 1 gear | 2,2 mt |
| Max. operating pressure | 320 bar |
| Pump capacity | 33 - 45 l/m |
| Weight | 1420 t |
Technical data

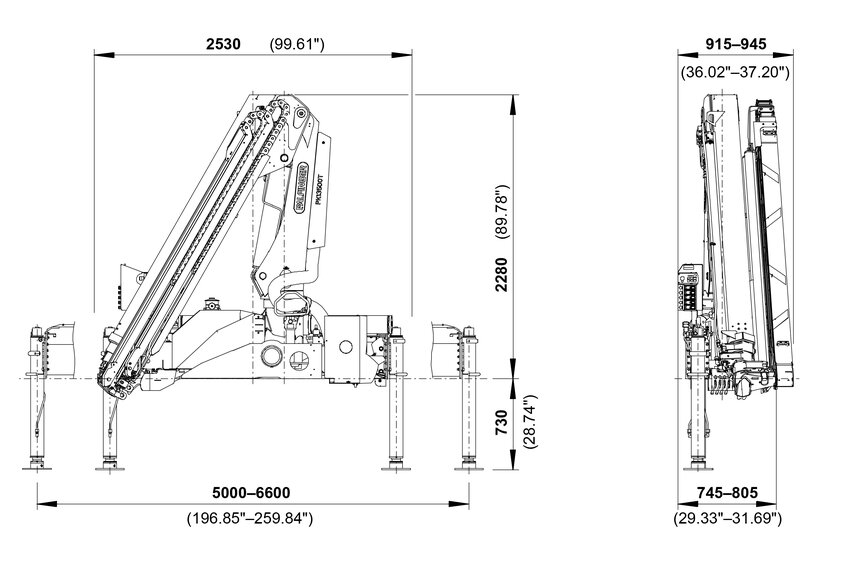

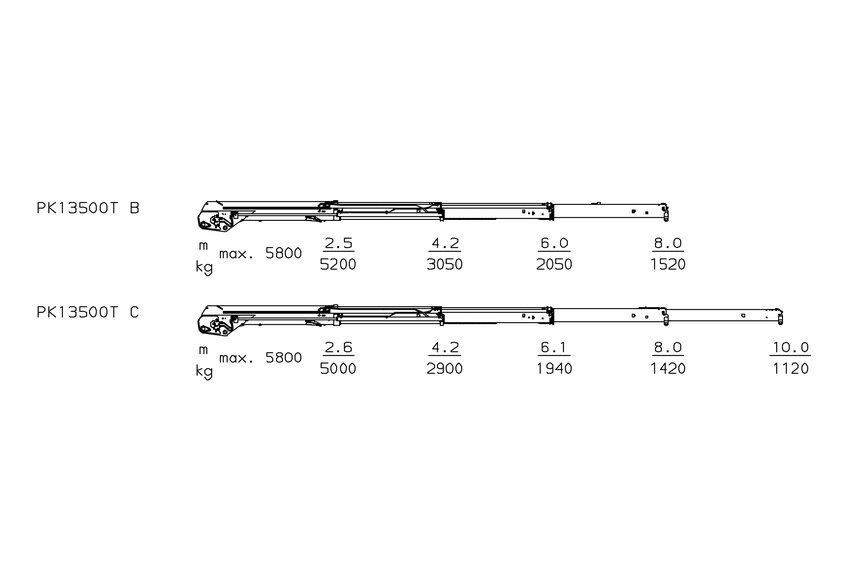

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 12.1 mt | 8.0 m | 420 ° | 2.2 mt | 32.0 Mpa | 35-45 l/min | 1420 kg | 2280 mm | 2530 mm | 745 mm | 7965 mm | 5800 kg | 1520 kg |
| C | 11.2 mt | 10.0 m | 420 ° | 2.2 mt | 32.0 Mpa | 35-45 l/min | 1530 kg | 2280 mm | 2530 mm | 785 mm | 10015 mm | 5800 kg | 1120 kg |
