PC 1500 Compact

Compact lightweight solutions between one and four metre tonnes with real PALFINGER power

• High value retention thanks to coating technology
• Optimum protection thanks to internal oil ducts in the extention cylinders
• Load holding valves prevent the crane boom from dropping
• Extended range of applications thanks to the optional radio remote control and cable winch

Technical data

Max. lifting moment	1,4 mt
Max. lifting capacity	990 kg

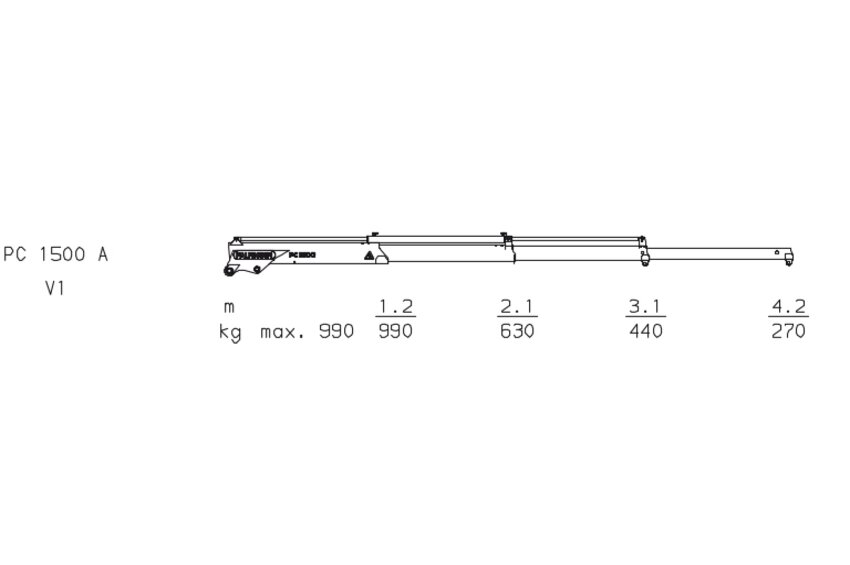

Max. hydraulic outreach	3,1 m
Max. manual outreach	4,2 m
Slewing angle	325°
Max. operating pressure	200 bar
Pump capacity	6 l/m
Weight	164 t

Technical data

	Lifting moment	Outreach	Slewing angle	Slewing torque	Pressure	Pump capacity	Crane weight	Crane height	Crane width	Installation width	Max stroke length	Max. lifting capacity	Load vertical
A	1.4 mt	3.1 m	325 °	0.2 mt	20.0 Mpa	6 l/min	164 kg	1300 mm	635 mm	395 mm	3101 mm	990 kg	430 kg
